Setting up MR329 without 3 dead turns

When teaching in the MR329 it isn’t required to set the 3dead turn parameter if the block will reach the ground before running out of rope on the drum.
If you previously set the 3 dead turn and need to get rid of the saved information on CSS, unpair the hook height encoder, pair it. Turn off CCS and turn it back on. Teach the zero height, and the upper height and then escape out of the teach in menu. A prompt will warn you on startup that 3 dead turns has not been set.

This is important because if you have a crane that reaches below the base of the crane the 3 dead turn function may preclude you from going low enough.



You can get around this if you want by pulling out rope onto the ground and setting the 3 dead turns but it may screw you on the next jobsite.

Windshield washer check valves

While filling the washer bottle, all the fluid would leak out.

On the output side of each washer pump is a check valve.

to access the valves the A/C unit must be removed.
found that the check valves were broken and cracked, presumably from freezing. Replaced the valves ( toyota part # 85321-26020) and washer bottle stays filled.

Luffing Winch Stop Monitoring Fault code.

While operating the MR 329 The operator lost boom down function. Fault Code 2074.25501 was listed in messages.  The Potain Fault code app had no definition of the fault code. I instructed the operator to turn off the crane and restart it. When the crane was running again the code was cleared and the crane regained boom function.

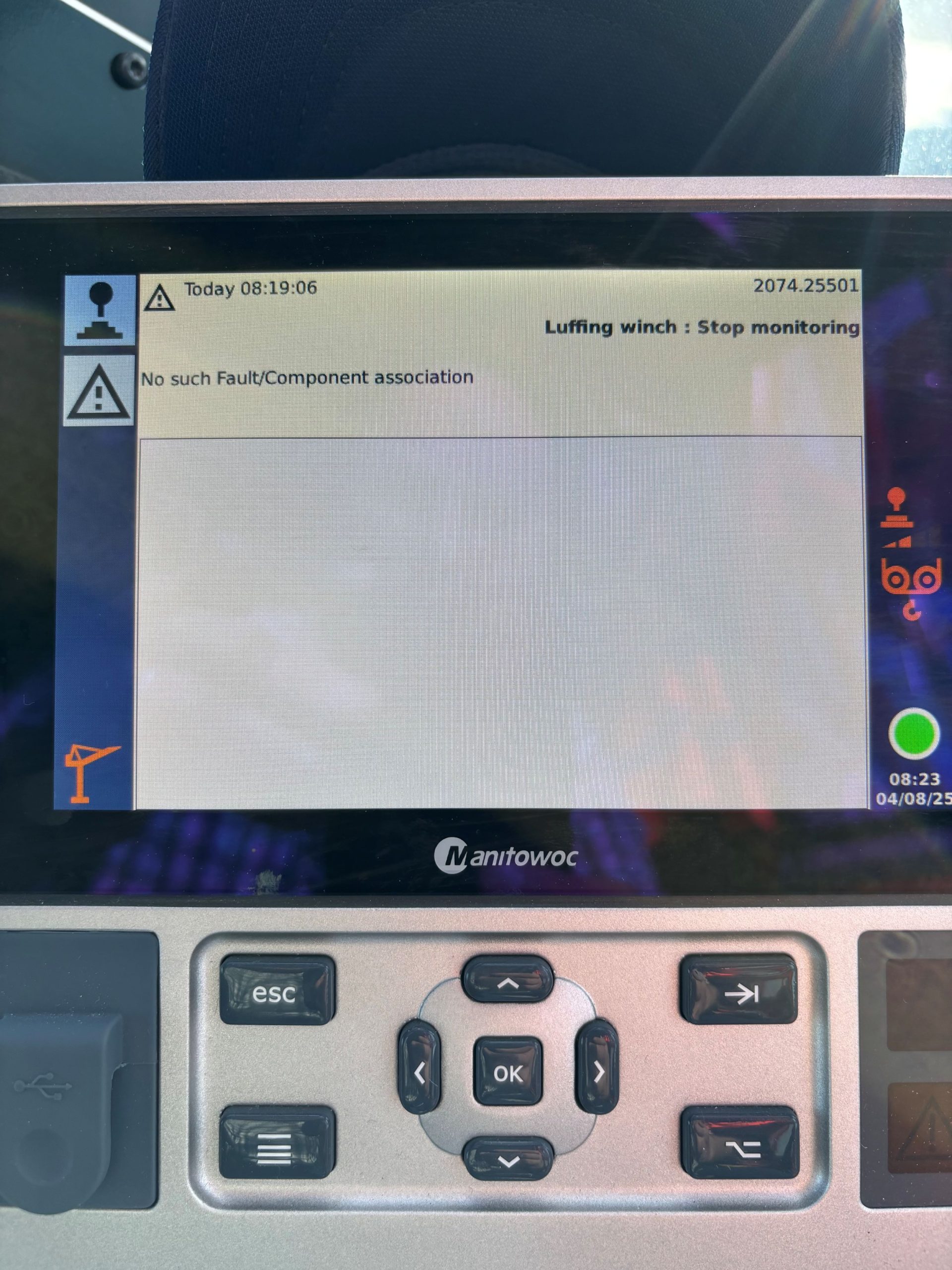

Attached is the Code and the code description from Potain.

25501 Stop monitoring definition
