Category: Potain HUP 32/27

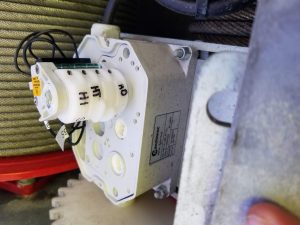

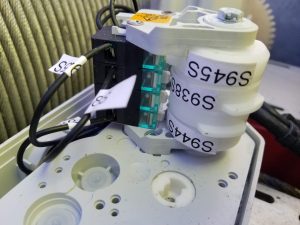

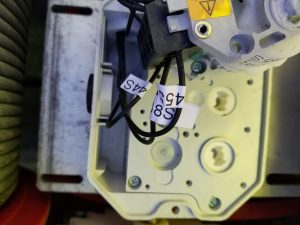

Proper identification of height sensor on telescoping drum

H1 Full working height

H0 Lower working height

HT Lowered for transport

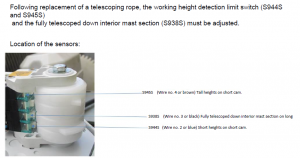

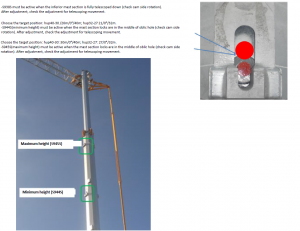

Mast position adjustment

When replacing the radio remote receiver on HUP, had to go into CCS and enter address and group of transmitter (radio remote).

When you turn on the remote, the screen stays on the page showing group and address.  Go to Mounting>Configuration>Radio Control (6-2-6) and enter both group and address.  Once complete press ENTER and look for the check mark.  ESC, ESC, ESC and press start button

When 24V system shorted out, computer reset to 00/00/00 and 00:00.

Go into system date to set time and date, and then can change General Preferences to region time.

Need to follow the directions on how to turn off the 3130 Error Code on the swing drive.

Must be at that stage of erection and switch to work mode on the remote.  Go into the drive and get to the 31.21 screen switch remote back to erection and you have to switch it from 1 to zero before it kicks you out.





Dustin,

Yes, the Fault can be changed in screen 31.21 to No Action. We can try this and see if that eliminates the issue. The suggestion from ABB is to download the ABB diagnostic software and map the DC voltage from the drive to the motor during this Fault condition time. Also, my contact suggested calling the ABB tech support line (1 800 4357 365) and start a case. The technician from ABB may have prior experience with this issue and provide more guidance. You will need the drive model and serial number for the call.

Chuck Burton
Product Trainer/Technical Services
Doosan Portable Power

1293 Glenway Drive
Statesville, NC 28625
T 704.883.3669
M 336.469.4835
chuck.burton@doosan.com
www.doosanportablepower.com



8528 is pass to get into drive under folder 96

Update as of 1/17/2019 – Turning off 31.21 (0) allows both the Wacker G25 and Doosan generators to erect Hups without fail (3130 code on slew drive).  The status of 31.21 will automatically revert to (1) or active.

On slew drive press <ENTER>  and down arrow until the Gear Cog (settings) shows.  Press <ENTER> at the file folder icon and scroll to 96 and press <ENTER>.  Scroll to 96.02 and enter code above.  Press <EXIT> to get to 31 and press <ENTER> and <ENTER> again at 31.21.  Change to <0>



Went to stand up HUP getting Error 7831 on drive.  Encoder feedback error

Confirmed top site was off

Went into Derating and turned off options for the encoder.

Waiting to see if we can turn back on once we stand up

***Once the encoder was turned off, found that the crane would not slew.  The slew motor with the encoder (the one to the right as you face the control panel) was not releasing the brake.  Freed up brake, crane would slew and reactivated the encoder***
