Dusty,
Full hoist rope length including rope to rig the jib and maintain 3 wraps is approximately 310-320m. At 30m of HUH, the crane would need approx 220m of rope in total to work in 4 part. You might, therefore, remove about 100m of rope if you discover that the rope is not reeving properly at the lesser operating mast and HUH height.

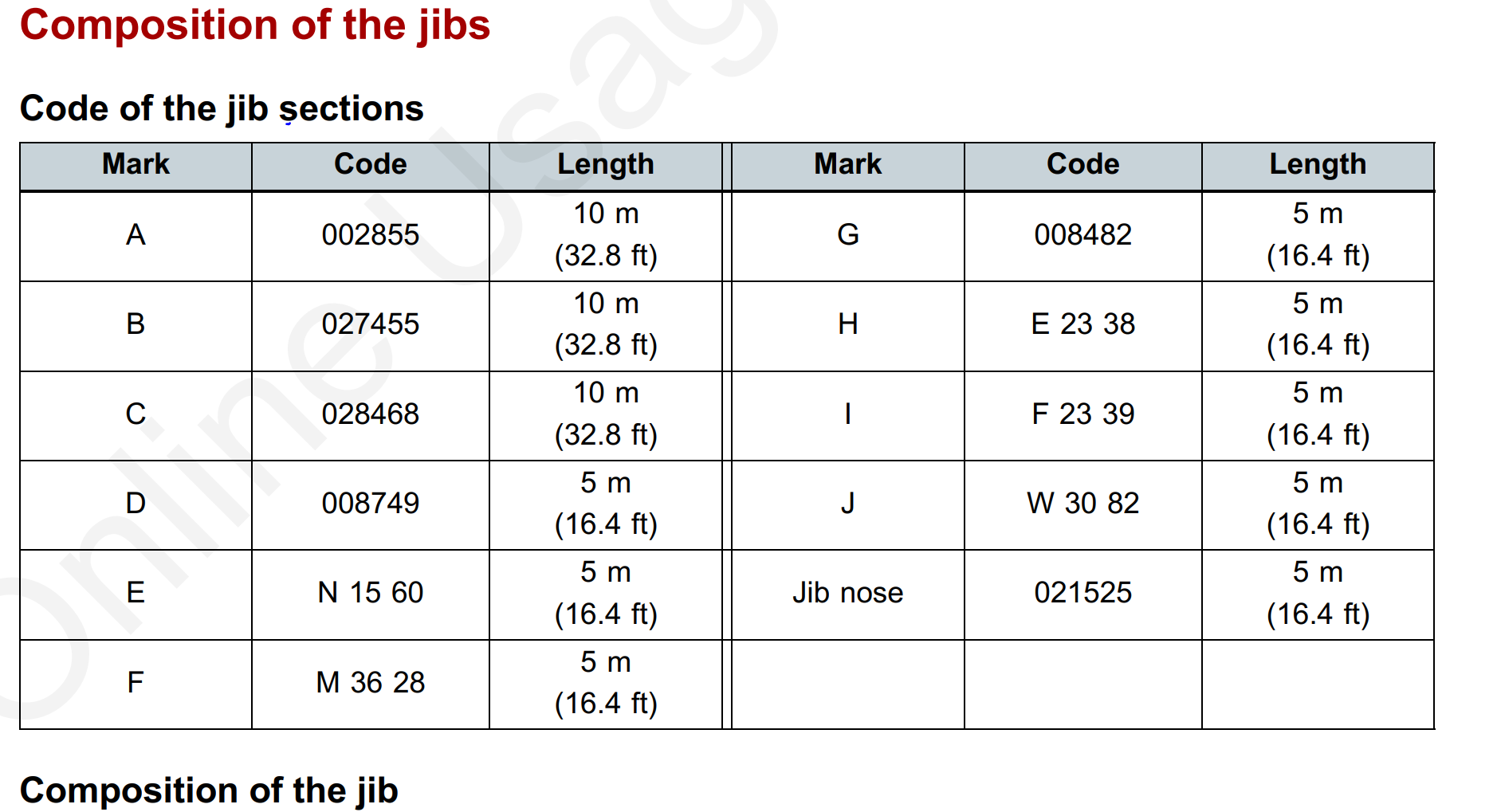

Use this to put jib parts together with their fucked up names from Potain

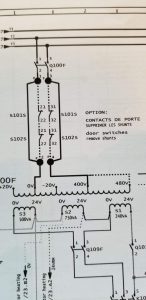

These are 480 volt wires! Insure all power to crane is shut off!

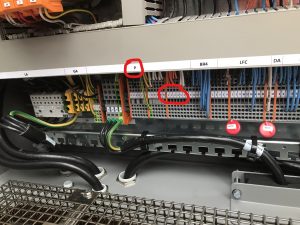

Jumper P strip 1 to 2 and 3 to 4 (all should have continuity)
All Top slew CCS machines
Don’t worry about the measurements, but make sure the mA’s are dead on.

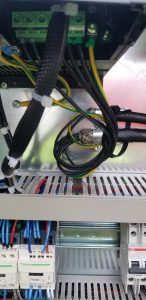

Re routed the can bus cable and got it away from all the high voltage incoming cables, brake chopper cable etc
Fault has cleared it self . Crane is picking fine
Going to monitor for a little while longer
It is the 3 wire plug that goes into the faceplate of the drive.

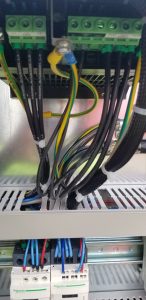

Before/After
