Assistance Mode Displayed
When starting crane Assistance Mode was displayed on processor. Found 1 of the angle sensors on cathead was backed off 1/2″. Readjusted, all is working well.
Tomas says crane needs to see hook height, trolley position and jib angle. Can see on Erection Aid and J3 inputs (3211)
Crane will go into Assistance Mode if 1 of 4 sensors are not reading correctly. 1) Jib Angle – To check, go into Erection Aid (Menu 6), page 1
2) Trolley position – Menu 3211 and Input/Output J3 (not J2/J3)
3) Hook position – Same as above
4) Load on hook – Menu 3211 Input/Output J4 B400Nx
Wrench on the screen
HUP Sensor List
Hup 40-30 won’t slew Code 7510
Code 7510
Had customer check power
L1-L2 290V L2-L3 290V L1-L3 290V
Hoist and trolley would work. Turn up power on generator to 476V. All is good at this time.
Adjusting Moment Limit Switch on HDT 80
On the rear of the mount for the dynametric ring located at the rear of the crane, is an adjustment bolt. On the side of the mount, there is an access plate to reach the bolt head. Remove plate, and adjust screw. Clockwise will allow load to mover further out on the jib, Counter-Clockwise will cutout movement sooner.
Hiab moving EXTREMELY slow swinging
Under the display on remote press left button for code reading.

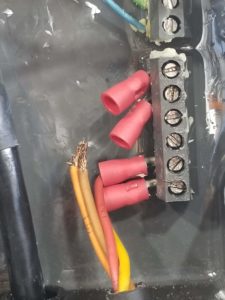

Called Hiab and codes indicated that slew sensor was not communicating to processor. Removed face of crane (where e-stop is located) and found 2 wires pulled out. Replaced connectors and reinstalled.
Hiab will not turn on
Crane not receiving 24 volts from converter – replace converter
Hiab XS 322 HiPro E-7
Hydraulic Oil for cranes ISO 46
Tower Crane Mast info on how to understand the names
One number the memo does not cover is the 2 at the end of your mast name.
K447E2
The 2 just means that it is the most recent revision (non structural) to make it compliant with different safety standards. In our case it would be OSHA.
Potain IGO T Shunt Code
9999
