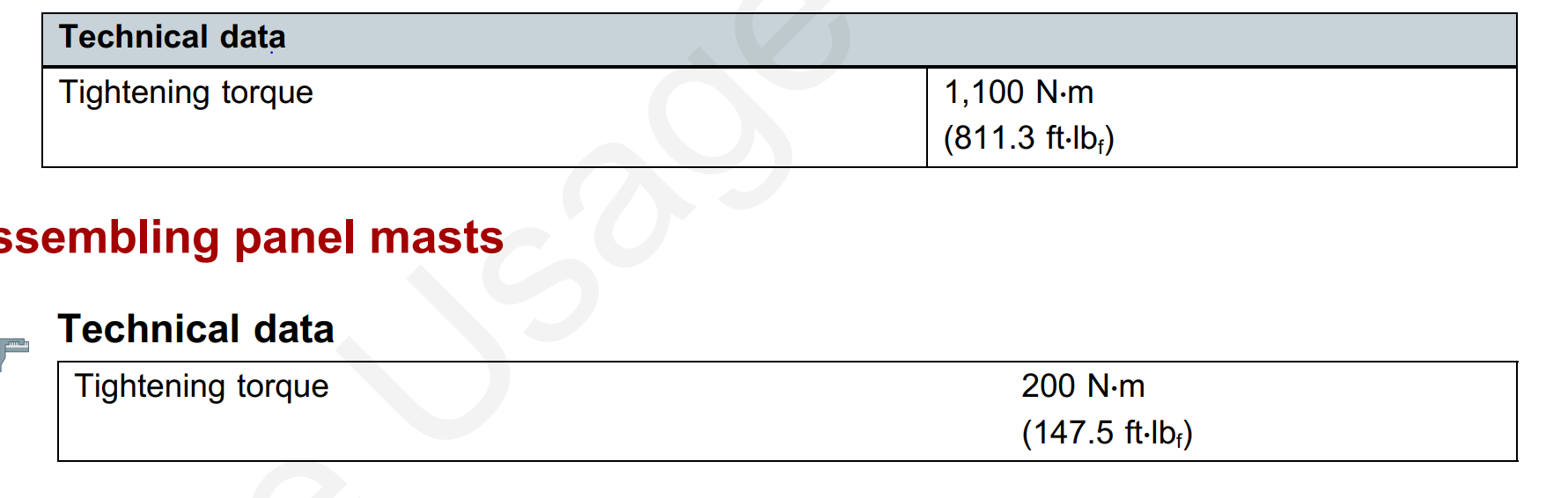

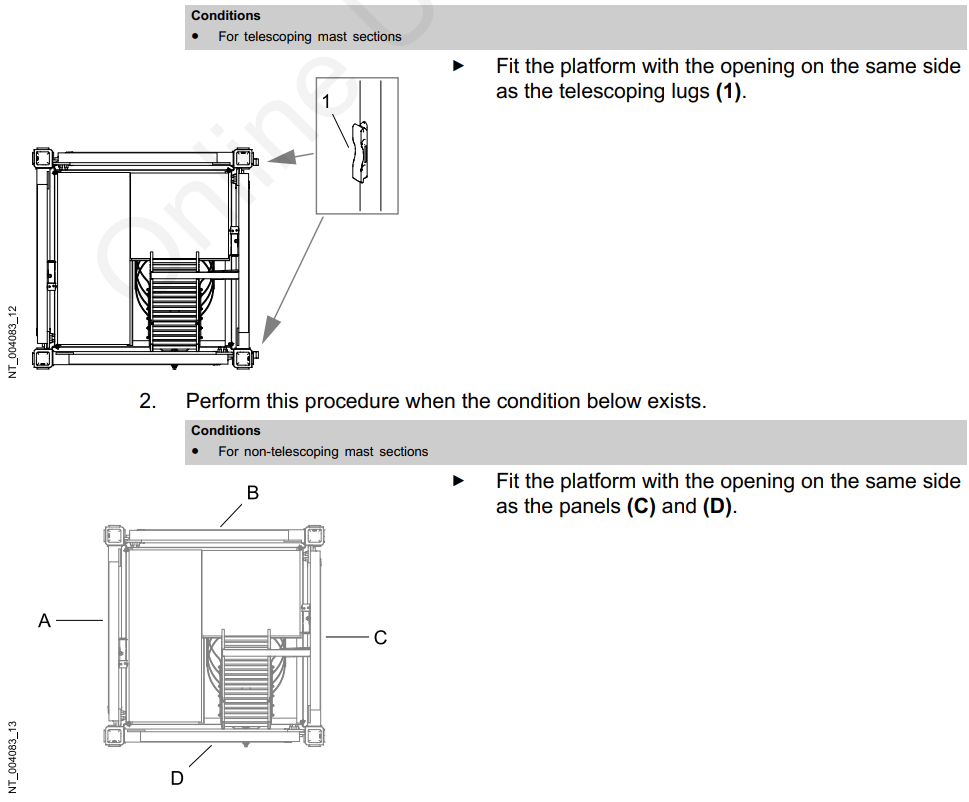

Category: Potain MDT 219 J10

Frequency drive starts and immediately shuts down, with code AFE1 (emergency stop)

Operator sent over following screen with active fault

Had to force K600M to stay energized (pressing in on the blue tab behind the plastic cover) to access drive and turn slew motor encoder to Partial Open Loop.  (74.12)

Crane would start up and run, but operator didn’t like swing characteristics.  To be expected, the slew drive is no longer receiving feedback from the motors, and is estimating speed and direction.

Replace slew motor encoder, and all is good.

**Note from Denis**  Make sure and protect the shield with heat shrink or tape, as it can cause a short

If the motor encoder is internally shorted, the drive may not operate in partial open loop as it tries to protect itself.  If this is the case, unplug the 2 connectors from the slew drive and reprogram parameter 90.46 to Force Open Loop.

Error messages on CCs would be Slewing Frequency Converter lost (00011.20482) or Slewing Frequency Converter not detected (00011.20481)



Operator called and Plug Ins inside of cab not working.  Also, had a number of errors are were Open Circuit.

Q104F Circuit Breaker was tripped.  (Only blue breaker in the cabinet)

Trolley position could be set during Teach In, because it bypasses all encoders, but after completion and it Normal Operation Mode it would stop suddenly.  Found encoder box was not adjusted properly and the gear whell on the encoder box was not turning with trolley winch.  Readjust, and had to re-teach.

During erection, could not validate 0 moment in Teach In.  Both moment sensors were reading 0 mA.  If moments sensors are too close or too far away, they will be “out of range” and read 0 mA.  Need to be adjusted by gap once the crane is in the air and all of the weights are in.

5.5 mm is what it needs to be set at.

Thanks J MF P

CCS Driving Preferences

Dusty,

Full hoist rope length including rope to rig the jib and maintain 3 wraps is approximately 310-320m. At 30m of HUH, the crane would need approx 220m of rope in total to work in 4 part. You might, therefore, remove about 100m of rope if you discover that the rope is not reeving properly at the lesser operating mast and HUH height.
